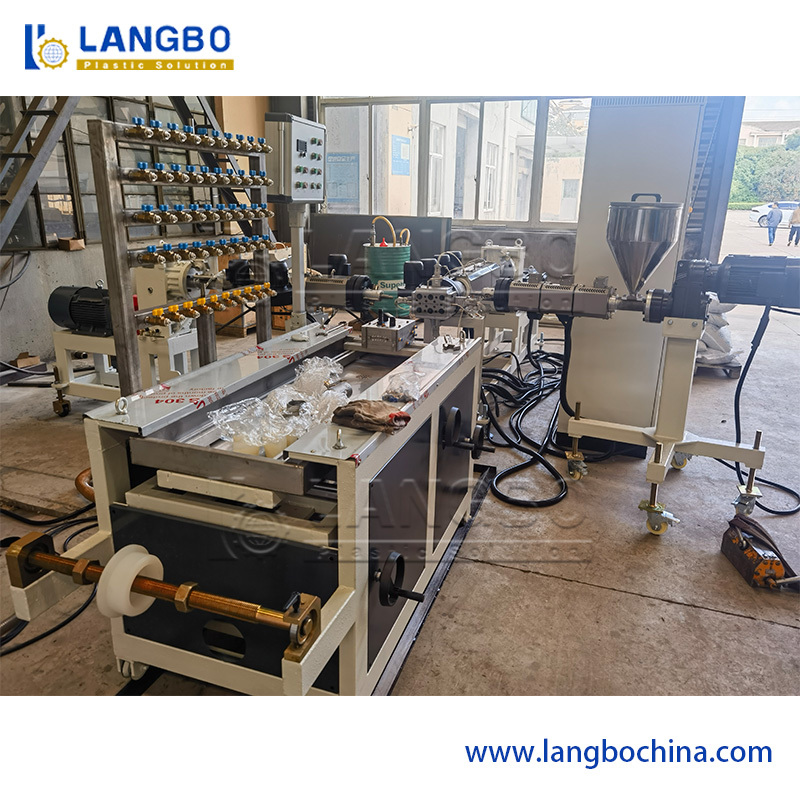

PVC Supermarket Price Label Strip Extrusion Machine
Short description
The PVC profile production line is widely used for producing various PVC profiles, such as PVC window&door profile, PVC ceiling panel, PVC trunking. With drawing sections of the PVC profile, tailed solutions and mould will be made.
Processing Process
The process flow of this line is PVC powder + additive - mixing-material feeder-twin screw extruder- mould and calibrator-vacuum forming table-haul-off machine-cutting machine-discharge rack.
This PVC profile extrusion line adopts conical twin screw extruder, which is suitable for both PVC powder and PVC granules. It has degassing system to ensure the excellent material plasticization. The high speed mould is available, and it can largely increase the productivity.
Application

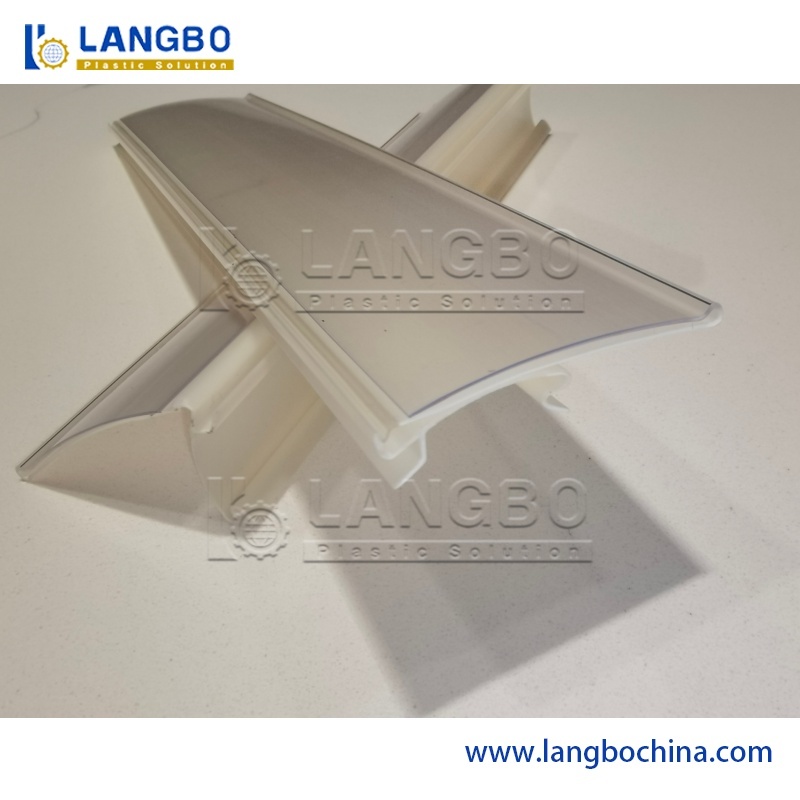

Suitable for supermarkets,convenience stores,chain stores,wholesale markets for fruit and food placement labels.The products have many varieties,bright transparency not easy to break,durable and other characteristics.
Specifications
|
Model
|
LB180 | LB240 | LB300 | LB600 |
|
Max width of products(mm)
|
180 | 240 | 300 | 600 |
|
Screw Model
|
SJ55/110
|
SJ65/132
|
SJ65/132
|
SJ80/156
|
|
Motor power
|
22KW
|
37KW
|
37KW |
55KW
|
|
Cooling Water(m3/h)
|
5 | 7 | 7 | 10 |
|
Compressor(m3/h)
|
0.2 | 0.3 | 0.3 | 0.4 |
|
Total length(m)
|
18m | 22m | 22m | 25m |
