Factory Price 55/110 Conical Twin Screw Extruder PVC Cable Trunking Extrusion Line with 1180mm Profile Size and 22KW Motor Power

1 세트
MOQ
USD,EUR
가격
Factory Price 55/110 Conical Twin Screw Extruder PVC Cable Trunking Extrusion Line with 1180mm Profile Size and 22KW Motor Power
풍모 갤러리 제품 설명 평점 및 리뷰 따옴표를 요구하십시오
풍모
제품 사양
압출기 유형: 55/110 원뿔형 트윈 스크류 압출기
프로필의 크기: 1180mm
모터 파워: 22kW
원료: PVC 파우더 및 첨가제
운반: 두 개의 독립적 인 트랙
교정 테이블: 8 마스터 길이
포장방법: 나무 상자와 영화 패키지
프로필 크기: 고객의 그림에 따르면
배달 시간: 90 일 이내에
강조하다:

55/110 Conical Twin Screw Extruder PVC Cable Trunking Extrusion Line

,

1180mm Profile Size PVC Cable Trunk Making Machine

,

22KW Motor Power PVC Profile Extrusion Line
기본 정보
원래 장소: 잔자야 방
브랜드 이름: LB
인증: CE,ISO9001
모델 번호: LB-1180
결제 및 배송 조건
포장 세부 사항: 표준 패키지
배달 시간: 영업일 기준 45일
지불 조건: 신용장, 티/티
공급 능력: 달 당 15 세트
제품 설명
Factory Price PVC Plastic Electric Cable Trunking Extrusion Line
This specialized PVC profile cable trunk production line is engineered for manufacturing various PVC profiles including window and door profiles, ceiling panels, and cable trunking systems. Custom solutions and molds are developed based on specific profile drawings.
Production Process
  • PVC powder + additives → mixing
  • Material feeding → twin screw extrusion
  • Molding and calibration → vacuum forming
  • Haul-off → cutting → discharge racking
Key Features
  • Conical twin screw extruder compatible with both PVC powder and granules
  • Integrated degassing system for superior material plasticization
  • High-speed mold technology for enhanced productivity
  • Comprehensive PLC control system for centralized operation
Technical Specifications
Model LB180 LB240 LB300 LB600
Max Product Width (mm) 180 240 300 600
Screw Model SJ55/110 SJ65/132 SJ65/132 SJ80/156
Motor Power 22KW 37KW 37KW 55KW
Cooling Water (m³/h) 5 7 7 10
Compressor (m³/h) 0.2 0.3 0.3 0.4
Total Length (m) 18 22 22 25
Conical Twin Screw Extruder
Engineered specifically for processing dry PVC powder blends, our conical twin screw extruder ensures homogeneous mixing, superior plastification, and optimal conveying efficiency. The permanent magnet synchronous motor delivers high energy efficiency, while the integrated PLC system enables centralized control of the entire production line.

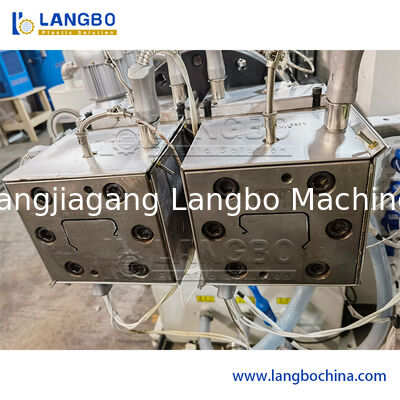

Plate Mould System
Features double-strand mold technology for PVC trunking production, significantly increasing output capacity. Advanced channel design provides exceptional flow performance, and precision manufacturing guarantees high-accuracy profile production.
Calibration Table
Constructed with a robust steel frame and SUS 304 stainless steel body, the calibration table incorporates multi-dimensional position adjustment. Strategic placement of water pumps and vacuum calibrators ensures rapid shaping and cooling of PVC profiles, with sufficient length for complete profile formation.
Haul-off & Cutting System
Even force distribution across caterpillar tracks delivers consistent hauling power. High-quality rubber components ensure reliable performance, while pneumatic pressure systems facilitate easy adjustment and product protection. Customizable cutting options include swarf-free and saw cutting methods.
Production Line Components
Factory Price 55/110 Conical Twin Screw Extruder PVC Cable Trunking Extrusion Line with 1180mm Profile Size and 22KW Motor Power 0
Complete Production Line
Factory Price 55/110 Conical Twin Screw Extruder PVC Cable Trunking Extrusion Line with 1180mm Profile Size and 22KW Motor Power 1

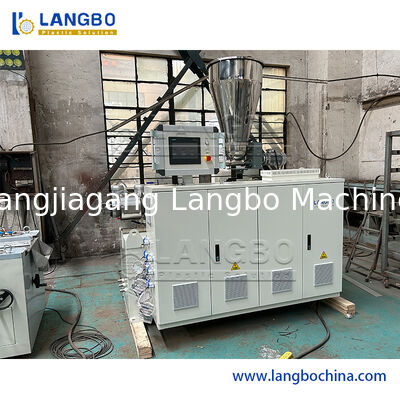

Twin Screw Extruder
Factory Price 55/110 Conical Twin Screw Extruder PVC Cable Trunking Extrusion Line with 1180mm Profile Size and 22KW Motor Power 2

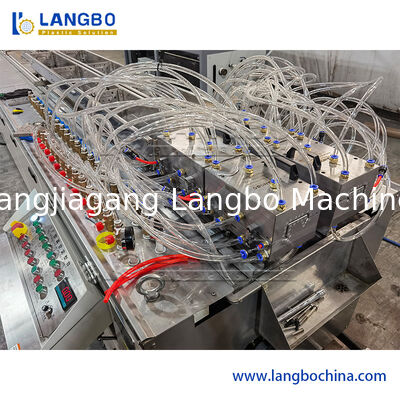

Calibration System
Factory Price 55/110 Conical Twin Screw Extruder PVC Cable Trunking Extrusion Line with 1180mm Profile Size and 22KW Motor Power 3

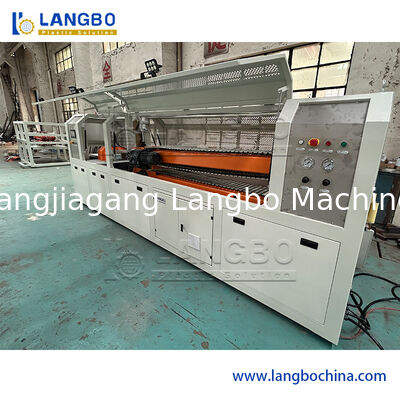

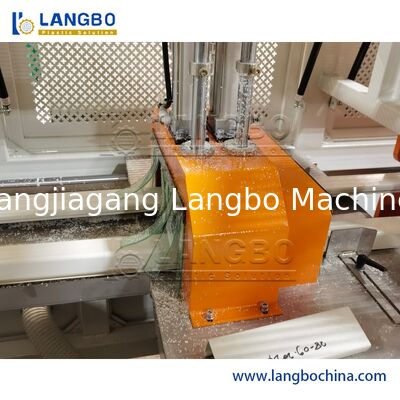

Haul-off & Cutting Unit
