High Quality Plastic PVC Profile Foamed Extruder WPC Widows Door Frame Floors PP PE PC Hollow Board Sealing Strip Extrusion Production Line

1
MOQ
USD
가격
High Quality Plastic PVC Profile Foamed Extruder WPC Widows Door Frame Floors PP PE PC Hollow Board Sealing Strip Extrusion Production Line
풍모 갤러리 제품 설명 평점 및 리뷰 따옴표를 요구하십시오
풍모
제품 사양
압출기 모델: 단일 나사 압출
프로필의 크기: 맥스. 2140mm
단일 나사 압출기: SJ 120/35
원료: PP 펠릿
커터: 톱 커터
전압: 380V 50HZ 3Phase(Customized)
인버터: 씨줄
애플리케이션: 건설
보증: 현지 장소에 설치 한 지 12 개월
색상: 고객의 요구에 따라
포장방법: 영화 또는 나무 상자
강조하다:

PVC profile extrusion production line

,

WPC window door frame extruder

,

hollow board sealing strip machine
기본 정보
원래 장소: Jiangsu Zhangjiagang
브랜드 이름: LB
인증: CE,ISO
모델 번호: LB-95/33
결제 및 배송 조건
포장 세부 사항: 영화 또는 나무 상자
배달 시간: 45일
공급 능력: 달 당 15 세트
제품 설명
Processing Workflow
The complete production process follows this sequence: PVC powder + additives → mixing material feeder → twin screw extruder → mould and calibrator → vacuum forming table → haul-off machine → cutting machine → discharge rack.
Key Features
  • Conical twin screw extruder compatible with both PVC powder and granules
  • Integrated degassing system for superior material plasticization
  • High-speed mould technology for enhanced productivity
  • Advanced PLC control system for centralized production management
Technical Specifications
Model LB180 LB240 LB300 LB600
Max Product Width (mm) 180 240 300 600
Screw Model SJ55/110 SJ65/132 SJ65/132 SJ80/156
Motor Power 22KW 37KW 37KW 55KW
Cooling Water (m³/h) 5 7 7 10
Compressor (m³/h) 0.2 0.3 0.3 0.4
Total Length (m) 18 22 22 25
Production Components

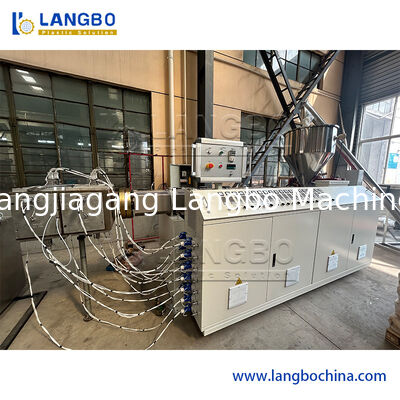

Single Screw Extruder
Features specially designed screws optimized for processing dry PVC powder blends. The conical twin screw extruder ensures homogeneous mixture, superior plastification, and efficient material conveying. Powered by permanent magnet synchronous motors for high energy efficiency.
High Quality Plastic PVC Profile Foamed Extruder WPC Widows Door Frame Floors PP PE PC Hollow Board Sealing Strip Extrusion Production Line 0

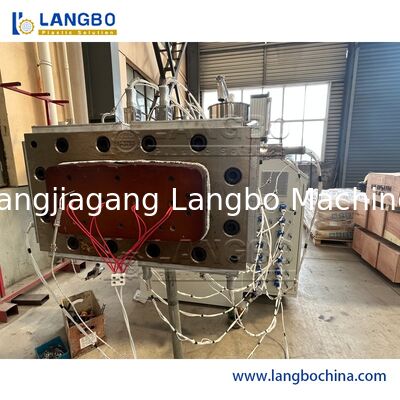

Plate Mould
Double strand mould configuration for PVC trunking production significantly increases output. Advanced channel design provides exceptional flow performance and produces profiles with high dimensional precision.
High Quality Plastic PVC Profile Foamed Extruder WPC Widows Door Frame Floors PP PE PC Hollow Board Sealing Strip Extrusion Production Line 1

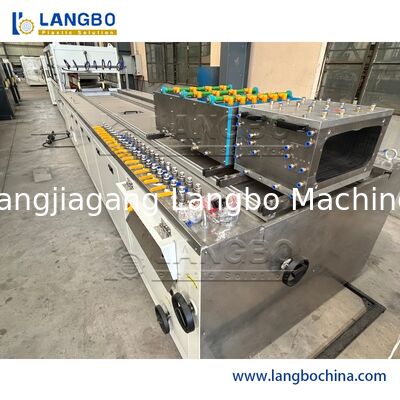

Calibration Table
Constructed with stable steel frame and SUS 304 stainless steel body. Features multi-dimension position adjustment system with precisely arranged water pumps and vacuum calibrators for rapid shaping and cooling of PVC profiles.
High Quality Plastic PVC Profile Foamed Extruder WPC Widows Door Frame Floors PP PE PC Hollow Board Sealing Strip Extrusion Production Line 2
Haul-off System
Provides uniform force distribution across all caterpillars with sufficient hauling capacity. High-quality rubber components and pneumatic pressure system enable easy adjustment and product protection.
High Quality Plastic PVC Profile Foamed Extruder WPC Widows Door Frame Floors PP PE PC Hollow Board Sealing Strip Extrusion Production Line 3

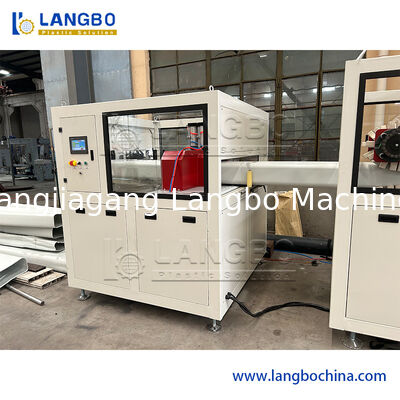

Cutting Unit
Ensures perfect finishing with clean, precise cuts on the final product.
High Quality Plastic PVC Profile Foamed Extruder WPC Widows Door Frame Floors PP PE PC Hollow Board Sealing Strip Extrusion Production Line 4 High Quality Plastic PVC Profile Foamed Extruder WPC Widows Door Frame Floors PP PE PC Hollow Board Sealing Strip Extrusion Production Line 5
