Plastic PVC Water Stopper Profile Extrusion Production Line/PVC Water Stop Making Machine

1세트
MOQ
USD,EUR
가격
Plastic PVC Water Stopper Profile Extrusion Production Line/PVC Water Stop Making Machine
풍모 갤러리 제품 설명 평점 및 리뷰 따옴표를 요구하십시오
풍모
제품 사양
압출기 유형: 55/110 원뿔형 트윈 스크류 압출기
프로필의 크기: 1180mm
모터 파워: 22KW
원료: PVC 파우더 및 첨가제
운반: 두 개의 독립적 인 트랙
교정 테이블: 8 마스터 길이
포장방법: 나무 상자와 영화 패키지
프로필 크기: 고객의 그림에 따르면
배달 시간: 90 일 이내에
강조하다:

PVC water stopper extrusion line

,

PVC water stop making machine

,

PVC profile extrusion production line
기본 정보
원래 장소: 잔자야 방
브랜드 이름: LB
인증: CE,ISO9001
모델 번호: LB-1180
결제 및 배송 조건
포장 세부 사항: 표준 패키지
배달 시간: 근무일 기준 45일
지불 조건: 신용장, 티/티
공급 능력: 달 당 15 세트
제품 설명
PVC Water Stopper Profile Extrusion Production Line
Complete manufacturing solution for producing PVC water stop profiles and various PVC profiles including window/door profiles, ceiling panels, and trunking systems.
Production Capabilities
This specialized PVC profile production line is engineered to manufacture diverse PVC profiles with precision. Custom solutions and molds are developed based on specific drawing sections of PVC profiles.
Processing Workflow
  • PVC powder + additive mixing
  • Material feeding system
  • Twin screw extrusion
  • Molding and calibration
  • Vacuum forming table
  • Haul-off mechanism
  • Precision cutting
  • Automated discharge rack
Technical Features
The extrusion line incorporates a conical twin screw extruder compatible with both PVC powder and granules. Features include degassing system for superior material plasticization and high-speed mold technology for enhanced productivity.
Technical Specifications
Model LB180 LB240 LB300 LB600
Max Product Width (mm) 180 240 300 600
Screw Model SJ55/110 SJ65/132 SJ65/132 SJ80/156
Motor Power 22KW 37KW 37KW 55KW
Cooling Water (m³/h) 5 7 7 10
Compressor (m³/h) 0.2 0.3 0.3 0.4
Total Length (m) 18 22 22 25
Component Details
Conical Twin Screw Extruder
Specially engineered screws designed for processing dry PVC powder blends. Features permanent magnet synchronous motor for high energy efficiency and PLC control system for centralized production line management.
Plate Mould System
Double strand mold configuration for PVC trunking production with optimized channel design ensuring high flow performance and precision profile manufacturing.
Calibration Table
Sturdy steel frame construction with SUS 304 stainless steel body. Multi-dimension position adjustment system with precisely arranged water pumps and vacuum calibrators for rapid shaping and cooling.
Haul-off & Cutting Combination
Even force distribution across caterpillars with high-quality rubber components. Pneumatic pressure system for easy adjustment and product protection. Customizable cutting options including swarfless and saw cutting methods.
Production Line Images

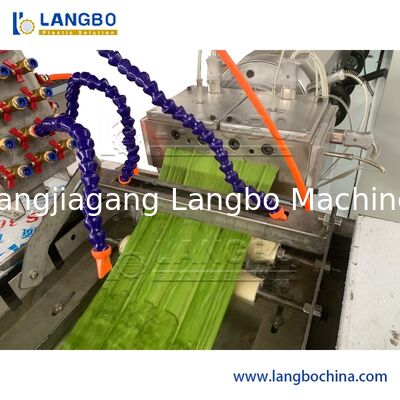

Plastic PVC Water Stopper Profile Extrusion Production Line/PVC Water Stop Making Machine 0 Plastic PVC Water Stopper Profile Extrusion Production Line/PVC Water Stop Making Machine 1 Plastic PVC Water Stopper Profile Extrusion Production Line/PVC Water Stop Making Machine 2 Plastic PVC Water Stopper Profile Extrusion Production Line/PVC Water Stop Making Machine 3 Plastic PVC Water Stopper Profile Extrusion Production Line/PVC Water Stop Making Machine 4
